Name: Konig CCD Max Wheel Defense Kit
Brand: Konig American
SKU: KONCCDKIT
Price: 537.0 USD
Availability: InStock

**Appearance of your actual wheel may differ. Click here for details!**

F1M AT A GLANCE...

The KONIG F1M is a FORGED, mesh design, that has been drastically optimized for increased rigidity, extensive weight savings as well as its increased ability to withstand fatigue. All of this is a result of DECADES of proven motorsport feedback and experience.

The F1M delivers increased tensile strength that exceeds our Flow Formed wheel line up and is the perfect graduation if you want to make that jump!

The KONIG FORGED line represents progression, innovation, and the unwavering dedication our team had to bring to market an affordably priced, uncompromising product that we are sincerely proud of. Konig forged wheels are built by a group of enthusiasts with the desire to make the best wheels possible for other fellow car enthusiasts.

Initial offerings will start in 17", 18" and 19" inch diameters with widths climbing up to 12.5", wide. Every wheel comes with an aluminum o-ring center cap, is finished in Ash Silver or Matte Black. Knurled bead seats come standard to prevent tire slip in high torque applications.

Feel the difference as unsprung weight is reduced, enhancing your car's responsiveness. Forged wheels are lighter and stronger, this translates to sharper handling, quicker acceleration, and improved braking.

Check our specs tab as we will continue to update the data as we add more fitments to our line.

Description

F1M AT A GLANCE...

The KONIG F1M is a FORGED, mesh design, that has been drastically optimized for increased rigidity, extensive weight savings as well as its increased ability to withstand fatigue. All of this is a result of DECADES of proven motorsport feedback and experience.

The F1M delivers increased tensile strength that exceeds our Flow Formed wheel line up and is the perfect graduation if you want to make that jump!

The KONIG FORGED line represents progression, innovation, and the unwavering dedication our team had to bring to market an affordably priced, uncompromising product that we are sincerely proud of. Konig forged wheels are built by a group of enthusiasts with the desire to make the best wheels possible for other fellow car enthusiasts.

Initial offerings will start in 17", 18" and 19" inch diameters with widths climbing up to 12.5", wide. Every wheel comes with an aluminum o-ring center cap, is finished in Ash Silver or Matte Black. Knurled bead seats come standard to prevent tire slip in high torque applications.

Feel the difference as unsprung weight is reduced, enhancing your car's responsiveness. Forged wheels are lighter and stronger, this translates to sharper handling, quicker acceleration, and improved braking.

Check our specs tab as we will continue to update the data as we add more fitments to our line.

F1M Features:

- 4-Lug
- 5-Lug
- 6-Lug
- Lightweight
- Low Offsets
- FORGED
- Back Cut
- Ball Cut
- Knurled Bead Seats
- High Offsets
- ALL KONIG FORGED WHEELS ARE:
- FORGED TO 10K TONS
- INCREASED TENSILE STRENGTH
- LIGHTER WEIGHTS / LOWER UNSPRUNG WEIGHT
- KNURLED BEAD SEATS
- HIGHER TOLERANCE OF RESISTANCE AGAINST FATIGUE
- LIMITED LIFETIME WARRANTY AGAINST STRUCTURAL DEFECT...details
- PROVEN HISTORY WITH OVER 40 YEARS OF WHEEL MANUFACTURING DEVELOPMENT

F1M FEATURES

F1M Features:

- 4-Lug
- 5-Lug
- 6-Lug
- Lightweight
- Low Offsets
- FORGED
- Back Cut
- Ball Cut
- Knurled Bead Seats
- High Offsets
- ALL KONIG FORGED WHEELS ARE:
- FORGED TO 10K TONS
- INCREASED TENSILE STRENGTH
- LIGHTER WEIGHTS / LOWER UNSPRUNG WEIGHT
- KNURLED BEAD SEATS
- HIGHER TOLERANCE OF RESISTANCE AGAINST FATIGUE
- LIMITED LIFETIME WARRANTY AGAINST STRUCTURAL DEFECT...details
- PROVEN HISTORY WITH OVER 40 YEARS OF WHEEL MANUFACTURING DEVELOPMENT

Konig Part#	Size	PCD	Offset (mm)	Finish	Center Bore	Construction	Load Rating	Net Weight (lb) Projected
F1M9710045B	17x9	4x100	45	SATIN BLACK	73.1	FORGED	1213	16.4
F1M9710045S	17x9	4x100	45	ASH SILVER	73.1	FORGED	1213	16.4
F1M8851242B	18x8.5	5x112	42	SATIN BLACK	66.56	FORGED	1543	17.43
F1M8851242S	18x8.5	5x112	42	ASH SILVER	66.56	FORGED	1543	17.43
F1M9851242B	18x9	5x112	42	SATIN BLACK	66.56	FORGED	1543	18.21
F1M9851242S	18x9	5x112	42	ASH SILVER	66.56	FORGED	1543	18.21
F1M0851425B	18x10.5	5x114.3	25	SATIN BLACK	73.1	FORGED	1543	19.09
F1M0851425S	18x10.5	5x114.3	25	ASH SILVER	73.1	FORGED	1543	19.09
F1M8851435B	18x8.5	5x114.3	35	SATIN BLACK	73.1	FORGED	1543	17.41
F1M8851435S	18x8.5	5x114.3	35	ASH SILVER	73.1	FORGED	1543	17.41
F1MN851425B	18x9.5	5x114.3	25	SATIN BLACK	73.1	FORGED	1543	18.21
F1MN851425S	18x9.5	5x114.3	25	ASH SILVER	73.1	FORGED	1543	18.21
F1MN851435B	18x9.5	5x114.3	35	SATIN BLACK	73.1	FORGED	1600	18.34
F1MN851435S	18x9.5	5x114.3	35	ASH SILVER	73.1	FORGED	1600	18.34
F1MT852025B	18x10	5x120	25	SATIN BLACK	72.56	FORGED	1600	18.38
F1MT852025S	18x10	5x120	25	ASH SILVER	72.56	FORGED	1600	18.38
F1M0852025B	18x10.5	5x120	25	SATIN BLACK	72.56	FORGED	1587	19.15
F1M0852025S	18x10.5	5x120	25	ASH SILVER	72.56	FORGED	1587	19.15
F1M1852044B	18x11	5x120	44	SATIN BLACK	72.56	FORGED	1587	19.08
F1M1852044S	18x11	5x120	44	ASH SILVER	72.56	FORGED	1587	19.08
F1M8852035B	18x8.5	5x120	35	SATIN BLACK	72.56	FORGED	1543	17.63
F1M8852035S	18x8.5	5x120	35	ASH SILVER	72.56	FORGED	1543	17.63
F1MN852035B	18x9.5	5x120	35	SATIN BLACK	72.56	FORGED	1600	18.51
F1MN852035S	18x9.5	5x120	35	ASH SILVER	72.56	FORGED	1600	18.51
F1MN852044B	18x9.5	5x120	44	SATIN BLACK	72.56	FORGED	1587	18.11
F1MN852044S	18x9.5	5x120	44	ASH SILVER	72.56	FORGED	1587	18.11
F1MT952025B	19x10	5x120	25	SATIN BLACK	72.56	FORGED	1587	TBD
F1MT952025S	19x10	5x120	25	ASH SILVER	72.56	FORGED	1587	TBD
F1M1952044B	19x11	5x120	44	SATIN BLACK	71.6	FORGED	1587	TBD
F1M1952044S	19x11	5x120	44	ASH SILVER	71.6	FORGED	1587	TBD
F1M9952044B	19x9.5	5x120	44	SATIN BLACK	72.56	FORGED	1587	19.04
F1M9952044S	19x9.5	5x120	44	ASH SILVER	72.56	FORGED	1587	19.04
F1MT852058B	18x10	5x120.65	58	SATIN BLACK	70.3	FORGED	1676	18.82
F1MT852058S	18x10	5x120.65	58	ASH SILVER	70.3	FORGED	1676	18.82
F1M0952036B	19x10.5	5x120.65	36	SATIN BLACK	70.3	FORGED	1676	19.84
F1M0952036S	19x10.5	5x120.65	36	ASH SILVER	70.3	FORGED	1676	19.84
F1M1952078B	19x11	5x120.65	78	SATIN BLACK	70.3	FORGED	1676	20.65
F1M1952078S	19x11	5x120.65	78	ASH SILVER	70.3	FORGED	1676	20.65
F1M2952056B	19x12.5	5x120.65	56	SATIN BLACK	70.3	FORGED	1676	21.79
F1M2952056S	19x12.5	5x120.65	56	ASH SILVER	70.3	FORGED	1676	21.79
F1M0853044B	18x10.5	5x130	44	SATIN BLACK	71.6	FORGED	1631	19.66
F1M0853044S	18x10.5	5x130	44	ASH SILVER	71.6	FORGED	1631	19.66
F1M2853065B	18x12	5x130	65	SATIN BLACK	71.6	FORGED	1631	21.07
F1M2853065S	18x12	5x130	65	ASH SILVER	71.6	FORGED	1631	21.07
F1M9853046B	18x9	5x130	46	SATIN BLACK	71.6	FORGED	1631	18.65
F1M9853046S	18x9	5x130	46	ASH SILVER	71.6	FORGED	1631	18.65
F1M1953046B	19x11	5x130	46	SATIN BLACK	71.6	FORGED	1631	20.39
F1M1953046S	19x11	5x130	46	ASH SILVER	71.6	FORGED	1631	20.39
F1M2953065B	19x12	5x130	65	SATIN BLACK	71.6	FORGED	1631	21.49
F1M2953065S	19x12	5x130	65	ASH SILVER	71.6	FORGED	1631	21.49
F1M9953050B	19x9	5x130	50	SATIN BLACK	71.6	FORGED	16.31	18.78
F1M9953050S	19x9	5x130	50	ASH SILVER	71.6	FORGED	16.31	18.78

SPEC LIST

Konig Part#	Size	PCD	Offset (mm)	Finish	Center Bore	Construction	Load Rating	Net Weight (lb) Projected
F1M9710045B	17x9	4x100	45	SATIN BLACK	73.1	FORGED	1213	16.4
F1M9710045S	17x9	4x100	45	ASH SILVER	73.1	FORGED	1213	16.4
F1M8851242B	18x8.5	5x112	42	SATIN BLACK	66.56	FORGED	1543	17.43
F1M8851242S	18x8.5	5x112	42	ASH SILVER	66.56	FORGED	1543	17.43
F1M9851242B	18x9	5x112	42	SATIN BLACK	66.56	FORGED	1543	18.21
F1M9851242S	18x9	5x112	42	ASH SILVER	66.56	FORGED	1543	18.21
F1M0851425B	18x10.5	5x114.3	25	SATIN BLACK	73.1	FORGED	1543	19.09
F1M0851425S	18x10.5	5x114.3	25	ASH SILVER	73.1	FORGED	1543	19.09
F1M8851435B	18x8.5	5x114.3	35	SATIN BLACK	73.1	FORGED	1543	17.41
F1M8851435S	18x8.5	5x114.3	35	ASH SILVER	73.1	FORGED	1543	17.41
F1MN851425B	18x9.5	5x114.3	25	SATIN BLACK	73.1	FORGED	1543	18.21
F1MN851425S	18x9.5	5x114.3	25	ASH SILVER	73.1	FORGED	1543	18.21
F1MN851435B	18x9.5	5x114.3	35	SATIN BLACK	73.1	FORGED	1600	18.34
F1MN851435S	18x9.5	5x114.3	35	ASH SILVER	73.1	FORGED	1600	18.34
F1MT852025B	18x10	5x120	25	SATIN BLACK	72.56	FORGED	1600	18.38
F1MT852025S	18x10	5x120	25	ASH SILVER	72.56	FORGED	1600	18.38
F1M0852025B	18x10.5	5x120	25	SATIN BLACK	72.56	FORGED	1587	19.15
F1M0852025S	18x10.5	5x120	25	ASH SILVER	72.56	FORGED	1587	19.15
F1M1852044B	18x11	5x120	44	SATIN BLACK	72.56	FORGED	1587	19.08
F1M1852044S	18x11	5x120	44	ASH SILVER	72.56	FORGED	1587	19.08
F1M8852035B	18x8.5	5x120	35	SATIN BLACK	72.56	FORGED	1543	17.63
F1M8852035S	18x8.5	5x120	35	ASH SILVER	72.56	FORGED	1543	17.63
F1MN852035B	18x9.5	5x120	35	SATIN BLACK	72.56	FORGED	1600	18.51
F1MN852035S	18x9.5	5x120	35	ASH SILVER	72.56	FORGED	1600	18.51
F1MN852044B	18x9.5	5x120	44	SATIN BLACK	72.56	FORGED	1587	18.11
F1MN852044S	18x9.5	5x120	44	ASH SILVER	72.56	FORGED	1587	18.11
F1MT952025B	19x10	5x120	25	SATIN BLACK	72.56	FORGED	1587	TBD
F1MT952025S	19x10	5x120	25	ASH SILVER	72.56	FORGED	1587	TBD
F1M1952044B	19x11	5x120	44	SATIN BLACK	71.6	FORGED	1587	TBD
F1M1952044S	19x11	5x120	44	ASH SILVER	71.6	FORGED	1587	TBD
F1M9952044B	19x9.5	5x120	44	SATIN BLACK	72.56	FORGED	1587	19.04
F1M9952044S	19x9.5	5x120	44	ASH SILVER	72.56	FORGED	1587	19.04
F1MT852058B	18x10	5x120.65	58	SATIN BLACK	70.3	FORGED	1676	18.82
F1MT852058S	18x10	5x120.65	58	ASH SILVER	70.3	FORGED	1676	18.82
F1M0952036B	19x10.5	5x120.65	36	SATIN BLACK	70.3	FORGED	1676	19.84
F1M0952036S	19x10.5	5x120.65	36	ASH SILVER	70.3	FORGED	1676	19.84
F1M1952078B	19x11	5x120.65	78	SATIN BLACK	70.3	FORGED	1676	20.65
F1M1952078S	19x11	5x120.65	78	ASH SILVER	70.3	FORGED	1676	20.65
F1M2952056B	19x12.5	5x120.65	56	SATIN BLACK	70.3	FORGED	1676	21.79
F1M2952056S	19x12.5	5x120.65	56	ASH SILVER	70.3	FORGED	1676	21.79
F1M0853044B	18x10.5	5x130	44	SATIN BLACK	71.6	FORGED	1631	19.66
F1M0853044S	18x10.5	5x130	44	ASH SILVER	71.6	FORGED	1631	19.66
F1M2853065B	18x12	5x130	65	SATIN BLACK	71.6	FORGED	1631	21.07
F1M2853065S	18x12	5x130	65	ASH SILVER	71.6	FORGED	1631	21.07
F1M9853046B	18x9	5x130	46	SATIN BLACK	71.6	FORGED	1631	18.65
F1M9853046S	18x9	5x130	46	ASH SILVER	71.6	FORGED	1631	18.65
F1M1953046B	19x11	5x130	46	SATIN BLACK	71.6	FORGED	1631	20.39
F1M1953046S	19x11	5x130	46	ASH SILVER	71.6	FORGED	1631	20.39
F1M2953065B	19x12	5x130	65	SATIN BLACK	71.6	FORGED	1631	21.49
F1M2953065S	19x12	5x130	65	ASH SILVER	71.6	FORGED	1631	21.49
F1M9953050B	19x9	5x130	50	SATIN BLACK	71.6	FORGED	16.31	18.78
F1M9953050S	19x9	5x130	50	ASH SILVER	71.6	FORGED	16.31	18.78

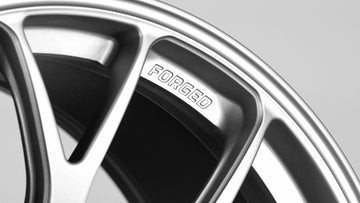

Tour the F1M!

The F1M is a clean and timeless mesh design. However, that's only part of the story...lets look closer!

Starting at the PCD lets travel up the spoke toward the outer edge of the wheel. The spoke base is elegant & ample while its sides have a precisely placed raised web that translates stress around the window melting into both the drop-center flange and the lip of the wheel.

As the spokes fork in opposing directions they radius into the outer "C" channel flange which increases the rigidity of the outer wheel edge.

Every cut, radius, fillet, chamfer, angle and shape are all intentionally placed to shave away aluminum where it isn't needed, reduce weight and improve the fatigue strength by reducing stress concentrations. All of this is found and confirmed using state of the art Finite Element Analysis.

FEA Analysis

Utilizing Finite Element Analysis (FEA) and advanced engineering simulation software we push every wheel design through countless variations of impact, bending and stress, simulations to optimize wheel weight, increase strength and rigidity and reinforce high-stress areas. FEA allows us to do hundreds of minor adjustments and simulations before we even get to the physical tests.

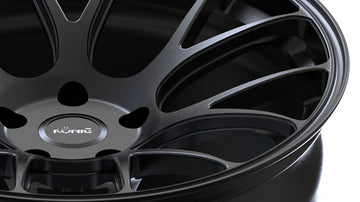

Concavity Profile

Traditional wheel designs often struggle to accommodate larger brake setups, especially on performance-oriented vehicles. Konig Forged wheels address this by utilizing size-specific concavity profiles. By strategically dishing the center section, we create ample clearance for big brake kits without compromising the wheel's overall design. This ensures optimal braking performance without resorting to spacers, which can introduce fitment issues and affect handling. Konig Forged wheels come in a wide range of sizes, from 17x9 to 19x12.5, with PCDs ranging from 4x100 to 5x130.

Knurled Bead Seat

Konig forged wheels incorporate knurled bead seating, a design feature that enhances the tire-to-wheel interface. This textured surface optimizes grip and minimizes tire slippage during high-performance maneuvers, promoting precise handling and driver confidence.

Heritage Built. Performance Driven.

Konig isn't just about flashy looks. We've been meticulously crafting wheels for over four decades, constantly evolving our manufacturing processes to achieve the perfect balance of strength, weight, and style. When you choose Konig, you're not just getting a wheel, you're choosing a trusted partner with a proven track record of innovation and performance.

Quality Control

Our commitment to quality control goes beyond aesthetics. We utilize advanced inspection methods and rigorous testing procedures to ensure every wheel meets the highest performance standards.
