HT1
HT1 AT A GLANCE...

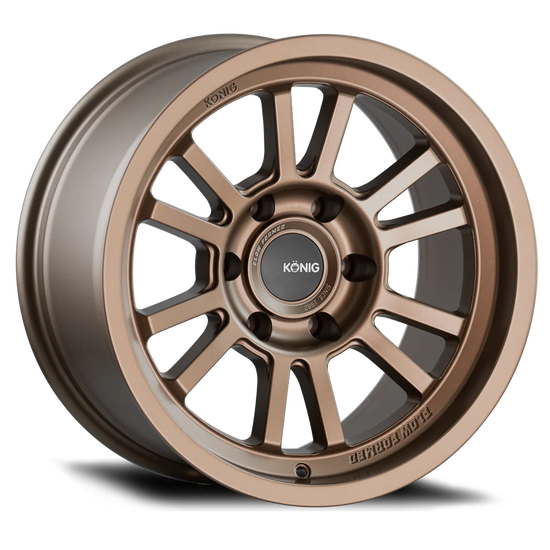

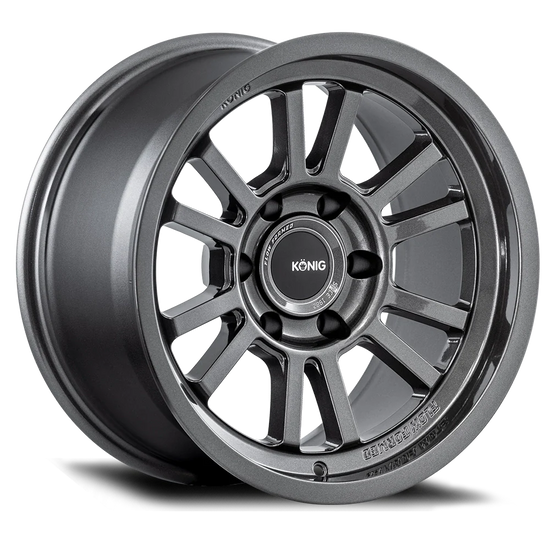

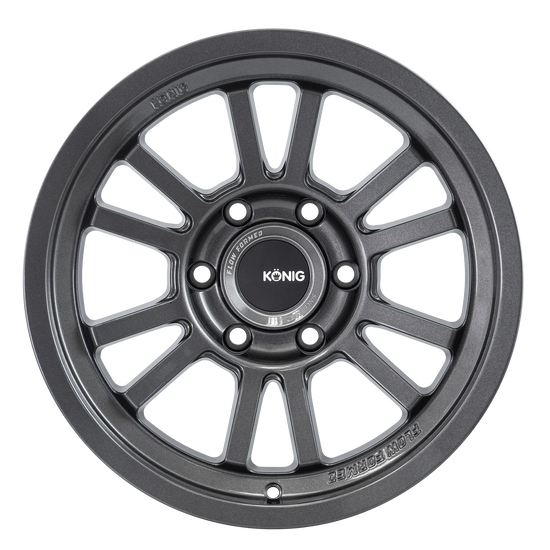

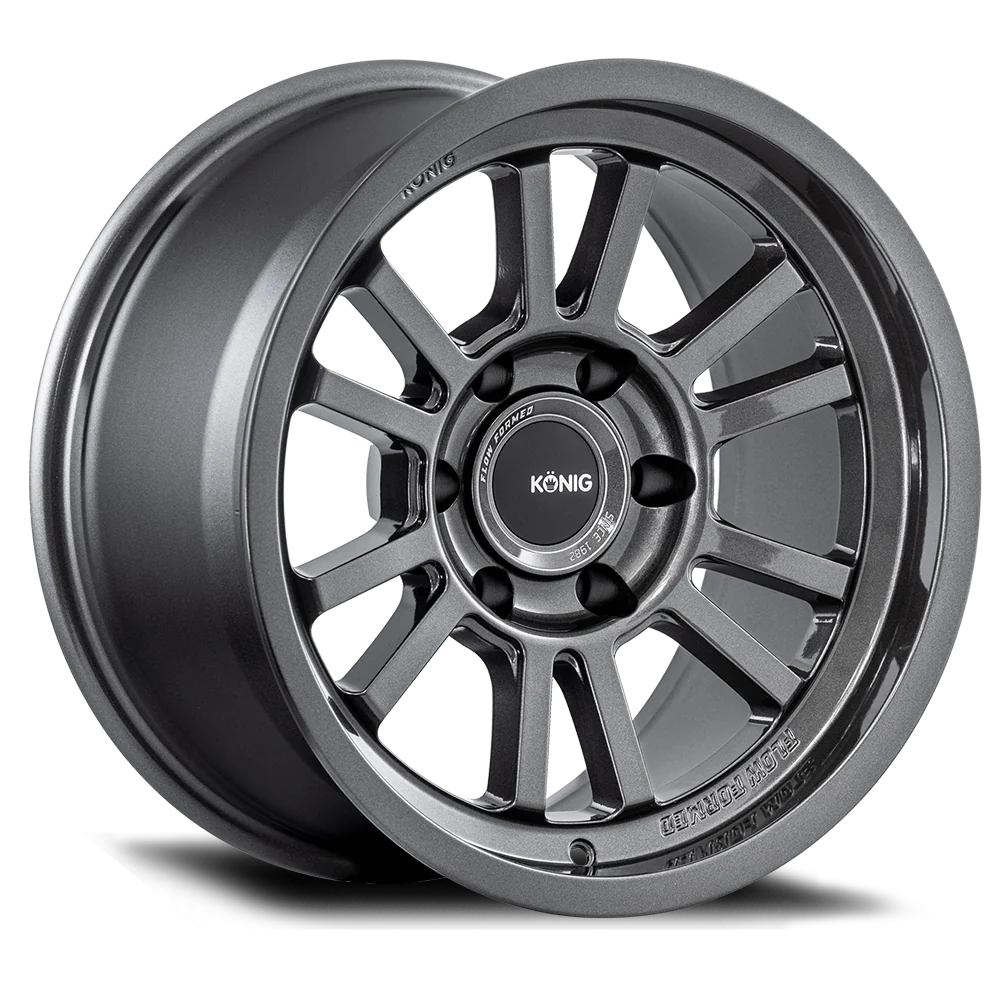

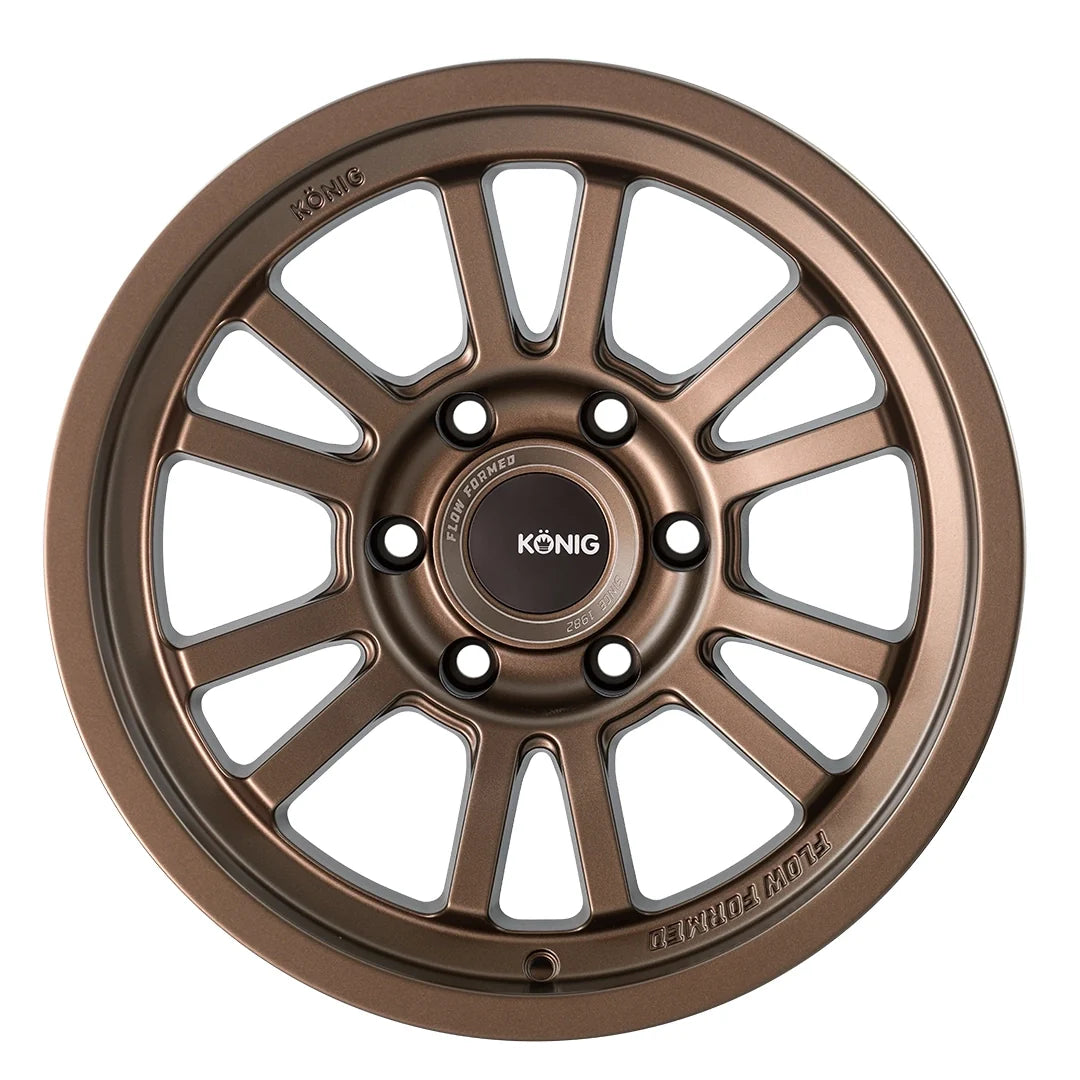

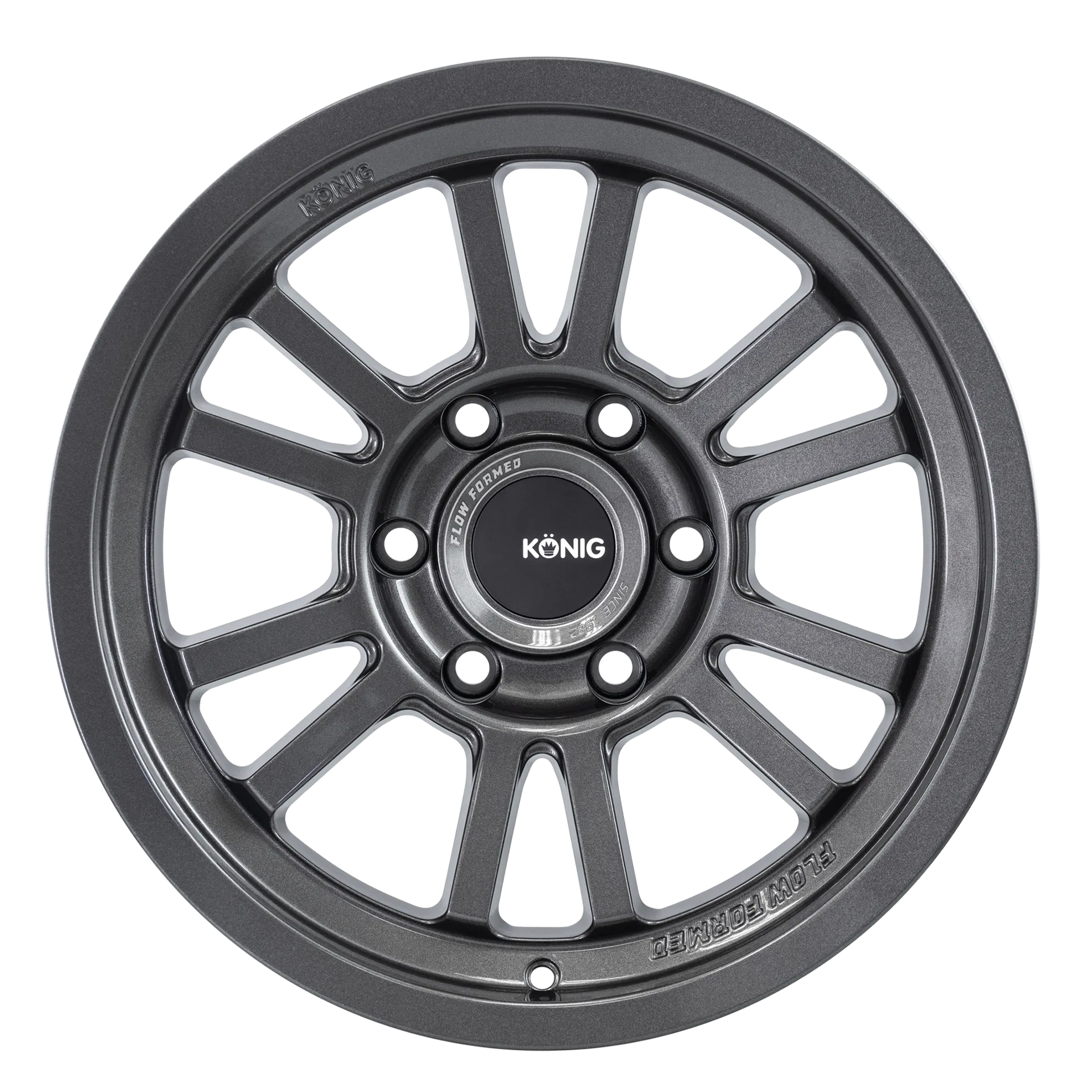

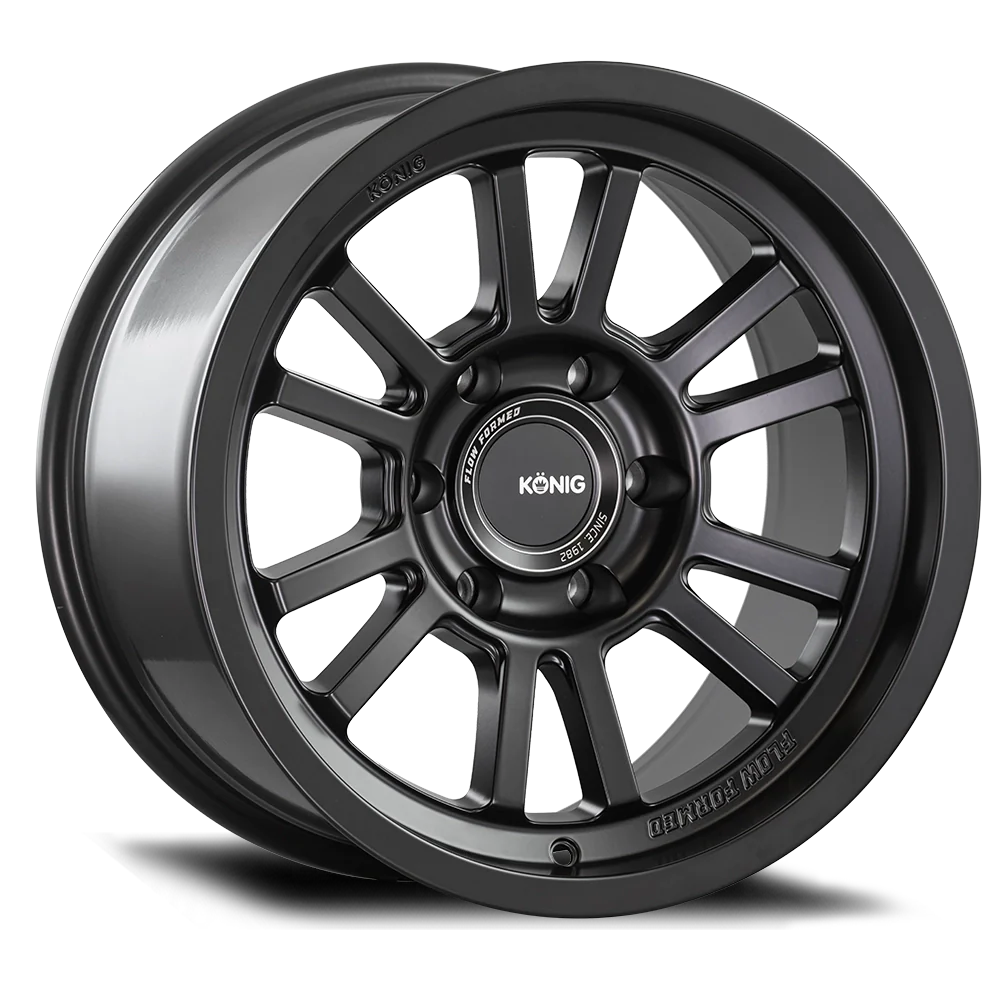

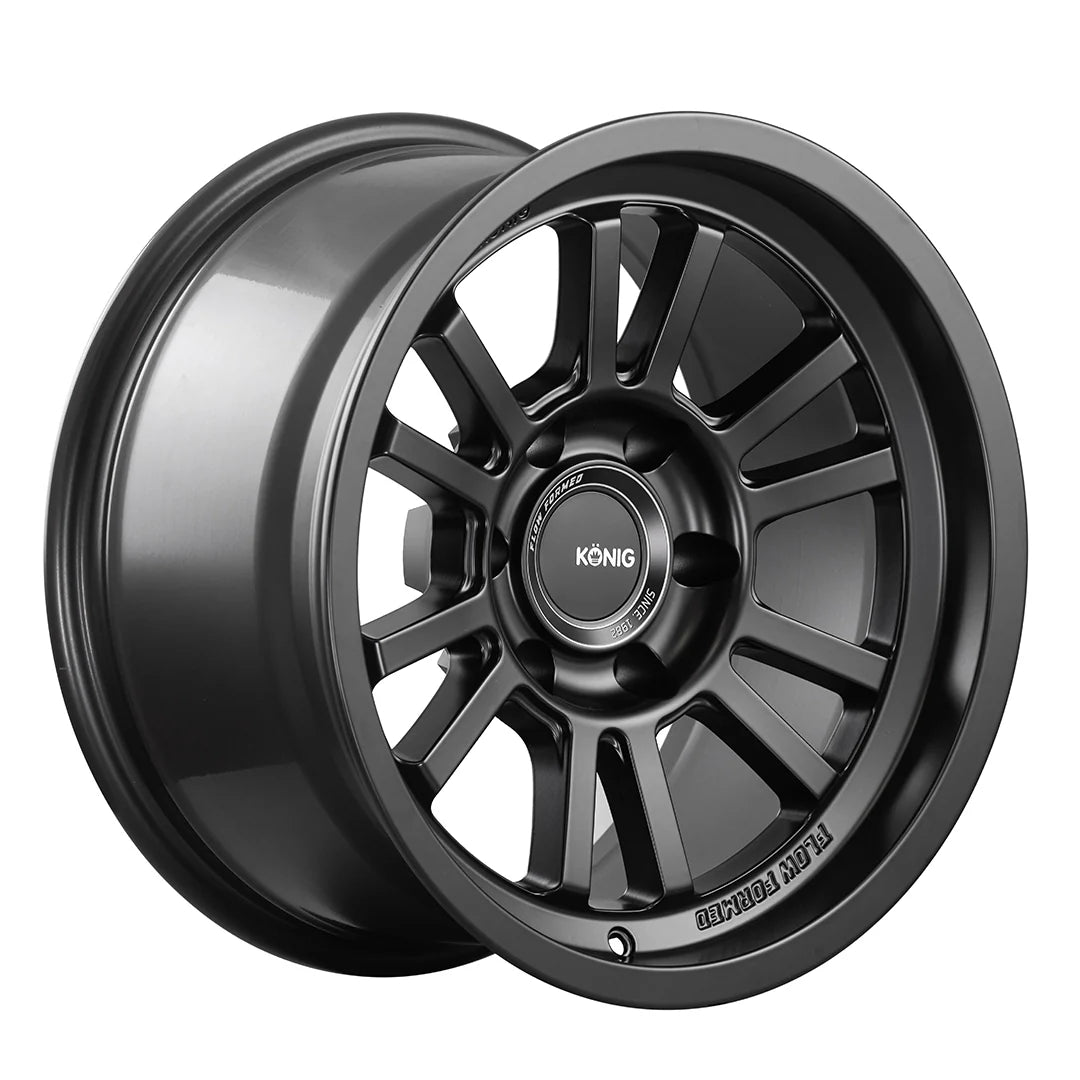

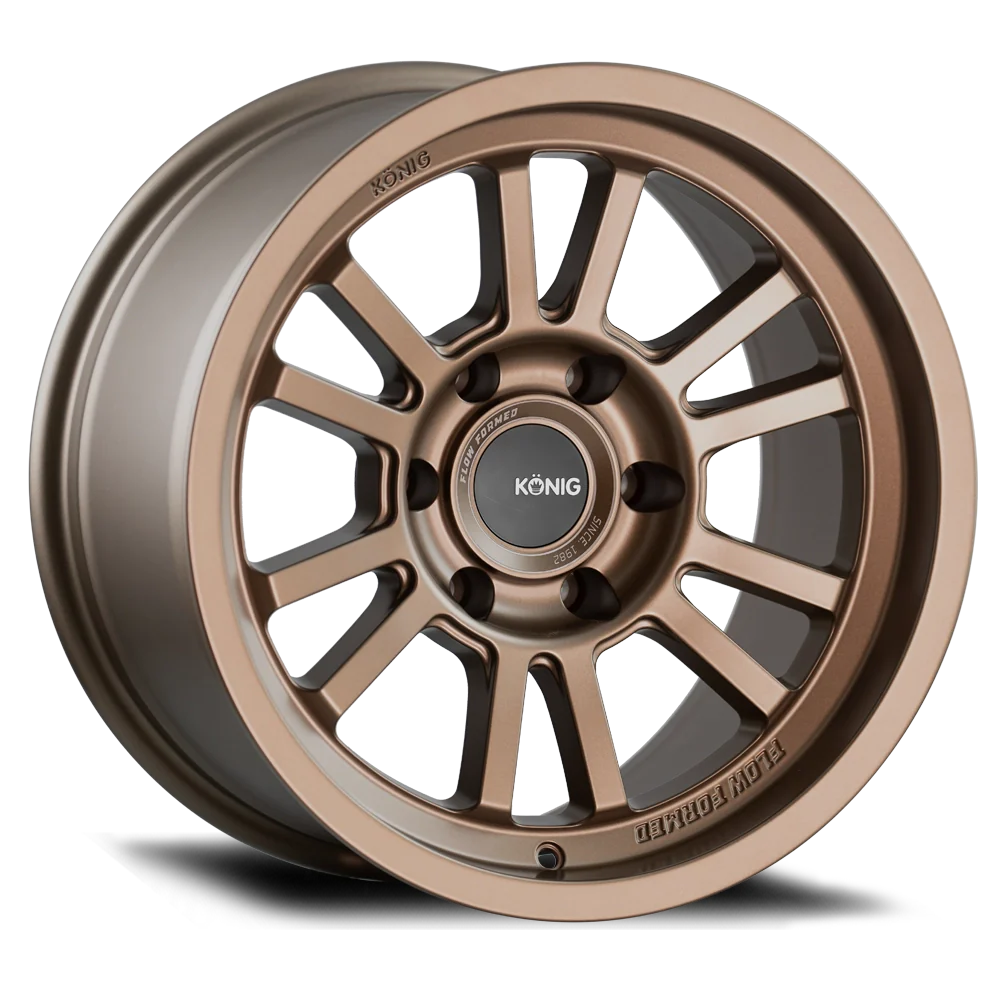

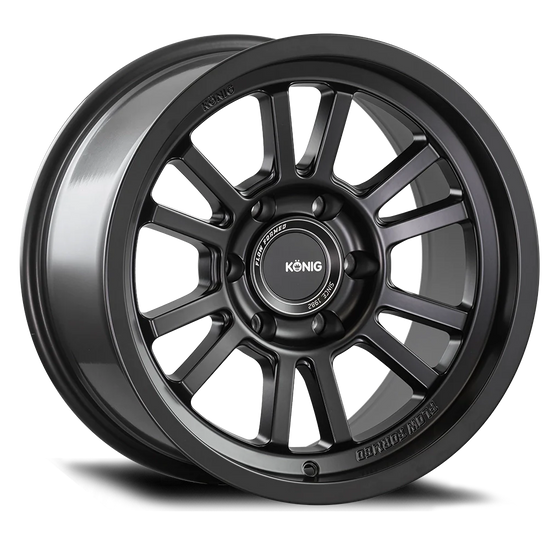

The HT1 is the first model of our new Hyper Trail Truck Series and styled with a 12-spoke flow formed design. The HyperTrail series brings all of the performance benefits that Konig Flow Formed wheels are known for in the motorsport world and offers applications for on and offroad Trucks, Jeeps and SUVs. Every HyperTrail wheel is constructed by utilizing FLOW FORMING TECHNOLOGY, is 2500 lbs load rated, comes with a increased thickness rear flange for extra rigidity, and has knurled bead seats to prevent tire slippage. The HT1 has a unique styled cap perch that allows the wheel to look finish if you choose to run the wheel without the center cap. The choice is yours, however, each wheel comes with the pictured flat, plastic pop-in center cap.
-
4-Lug
5-Lug- 6-Lug
- Lightweight For Truck
- Low Offsets
-
- FLOW FORMED
- Back Cut
- Ball Cut
- Knurled Bead Seats
- High Offsets
-
- INCREASED TENSILE STRENGTH
- LIGHTER WEIGHTS / LOWER UNSPRUNG WEIGHT
- INCREASED ELONGATION / GREATER SHOCK RESISTANCE
- HIGHER TOLERANCE OF RESISTANCE AGAINST FATIGUE
- LIMITED LIFETIME WARRANTY AGAINST STRUCTURAL DEFECT...details
- PROVEN HISTORY WITH OVER 40 YEARS OF WHEEL MANUFACTURING DEVELOPMENT
- 2500 LBS LOAD RATED
HT1 Features:
| Konig Part# | Size | PCD | Offset (mm) | Finish | Center Bore | Construction | Load Rating (lbs.) | Net Weight (lb) | Back Spacing | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| H1876139N65 | 17x8.5 | 6x139.7 | -6 | MATTE BLACK | 106.1 | FLOW FORMED | 2500 | 24.04 | 4.51" | |
| H1876139N68 | 17x8.5 | 6x139.7 | -6 | SATIN BRONZE | 106.1 | FLOW FORMED | 2500 | 24.04 | 4.51" | |
| H1975127N125 | 17x9 | 5x127 | -12 | MATTE BLACK | 71.5 | FLOW FORMED | 2500 | 24.99 | 4.53" | |
| H1975127N128 | 17x9 | 5x127 | -12 | SATIN BRONZE | 71.5 | FLOW FORMED | 2500 | 24.99 | 4.53" | |
| H1985127005 | 18x9 | 5x127 | 0 | MATTE BLACK | 71.5 | FLOW FORMED | 2500 | 27.32 | 5" | |
| H1985127008 | 18x9 | 5x127 | 0 | SATIN BRONZE | 71.5 | FLOW FORMED | 2500 | 27.32 | 5" | |
| H1986139005 | 18x9 | 6x139.7 | 0 | MATTE BLACK | 106.1 | FLOW FORMED | 2500 | 27.32 | 5" | |
| H1986139006 | 18x9 | 6x139.7 | 0 | GLOSS ANTHRACITE | 106.1 | FLOW FORMED | 2500 | 27.32 | 5" | |
| H1986139008 | 18x9 | 6x139.7 | 0 | SATIN BRONZE | 106.1 | FLOW FORMED | 2500 | 27.32 | 5" |
Hypertrail HT1
Performance Inspired Design
Inspired by the tuner scene, the HyperTrail boasts a bold design with sharp lines and an aggressive stance, guaranteed to make your truck the center of attention. HT1 features a 12-spoke design and are flow-formed wheels.

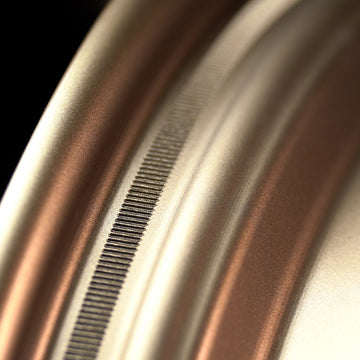

Knurled Bead Seat
The knurled bead seats on Konig HyperTrail wheels firmly lock onto your tires, preventing slippage while remaining DOT compliant.

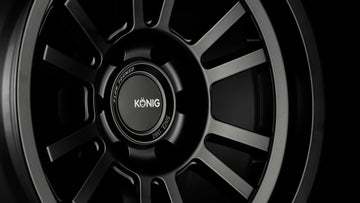

Konig Style
The HyperTrail Series has a unique styled cap perch that allows the wheel to look finished if you choose to run the wheel without the center cap. The choice is yours, however, each wheel comes with the pictured flat, plastic pop-in center cap.
Flow Formed
Is one of the most advanced manufacturing technologies to enter the wheel industry. Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning and after it has been casted. This process stretches and compresses the aluminum, which increases tensile strength. In this respect the process shares similar properties to those found in the forging process. The final product is lighter, stronger, has increased tensile strength and elongation, as well as a much greater shock resistance compared to traditional cast wheels.
FEA Analysis
Utilizing Finite Element Analysis (FEA) and advanced engineering simulation software we push every wheel design through countless variations of impact, bending and stress, simulations to optimize wheel weight, increase strength and rigidity and reinforce high-stress areas. FEA allows us to do hundreds of minor adjustments and simulations before we even get to the physical tests.
Heritage Built. Performance Driven.
Konig isn't just about flashy looks. We've been meticulously crafting wheels for over four decades, constantly evolving our manufacturing processes to achieve the perfect balance of strength, weight, and style. When you choose Konig, you're not just getting a wheel, you're choosing a trusted partner with a proven track record of innovation and performance.

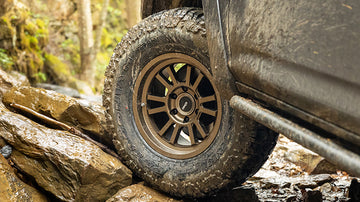

The Final Product
Compared to traditional cast truck wheels, these innovative manufacturing processes boast a significant reduction in weight while improving overall strength. Think improved acceleration, better handling, and even sharper braking thanks to the reduced rotating mass. Every pound counts, especially when it's unsprung weight hanging off your axles.
Isn't Flow Formed Just Cast?
Diving deep into the advanced engineering that powers Flow Formed wheels. Discover the innovation that makes these wheels lighter, stronger, and precision-crafted for ultimate performance.
