HYPERSPEC
HYPERSPEC AT A GLANCE...

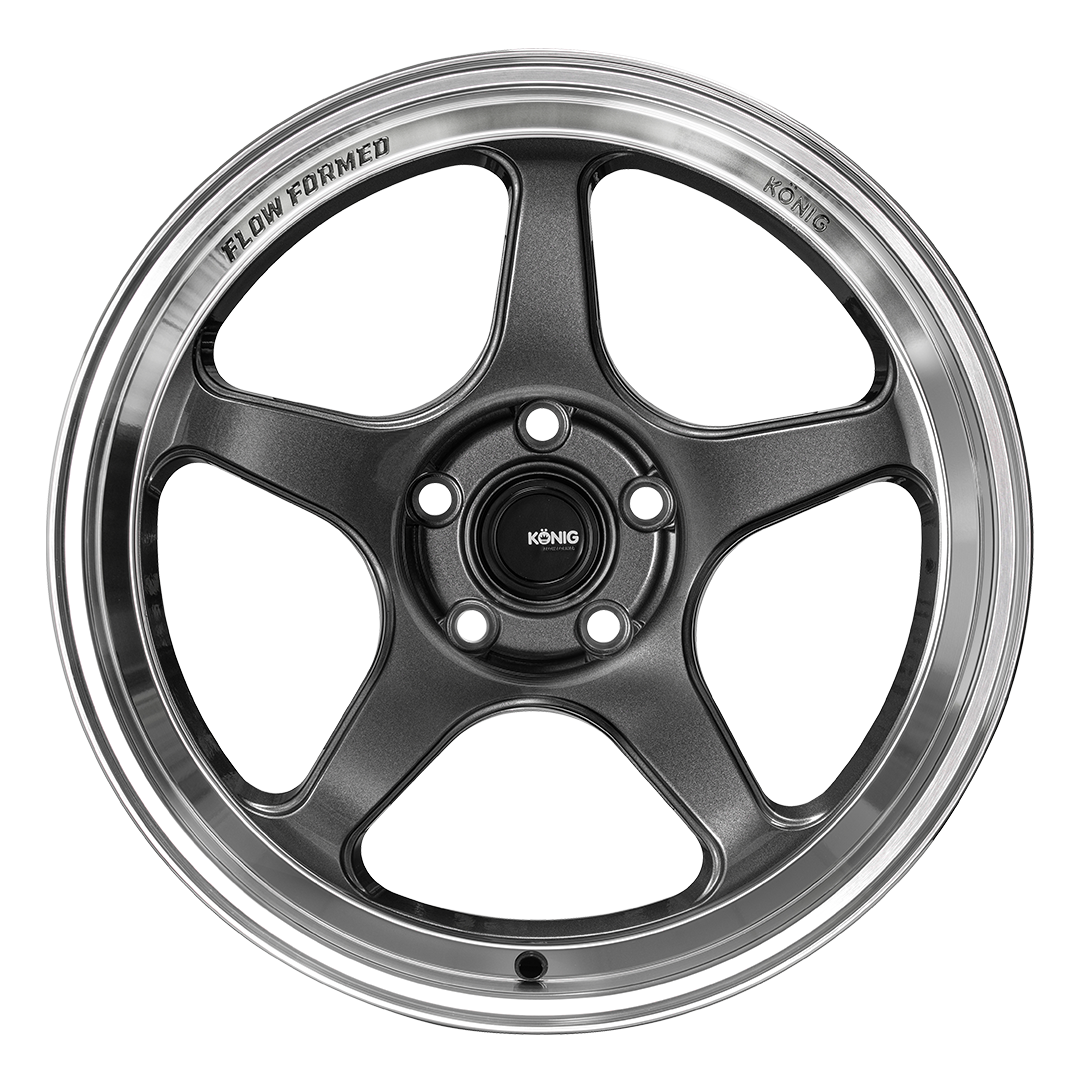

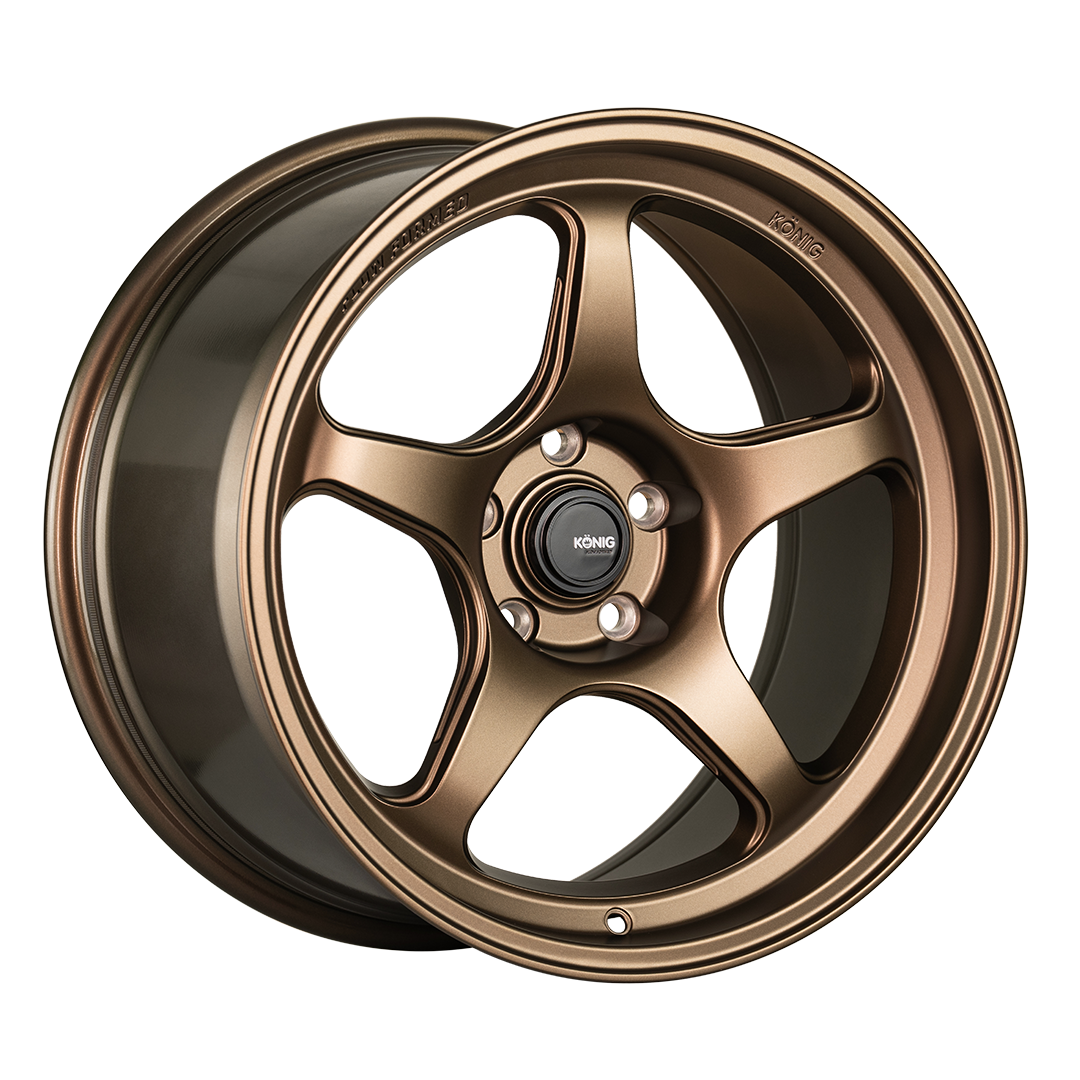

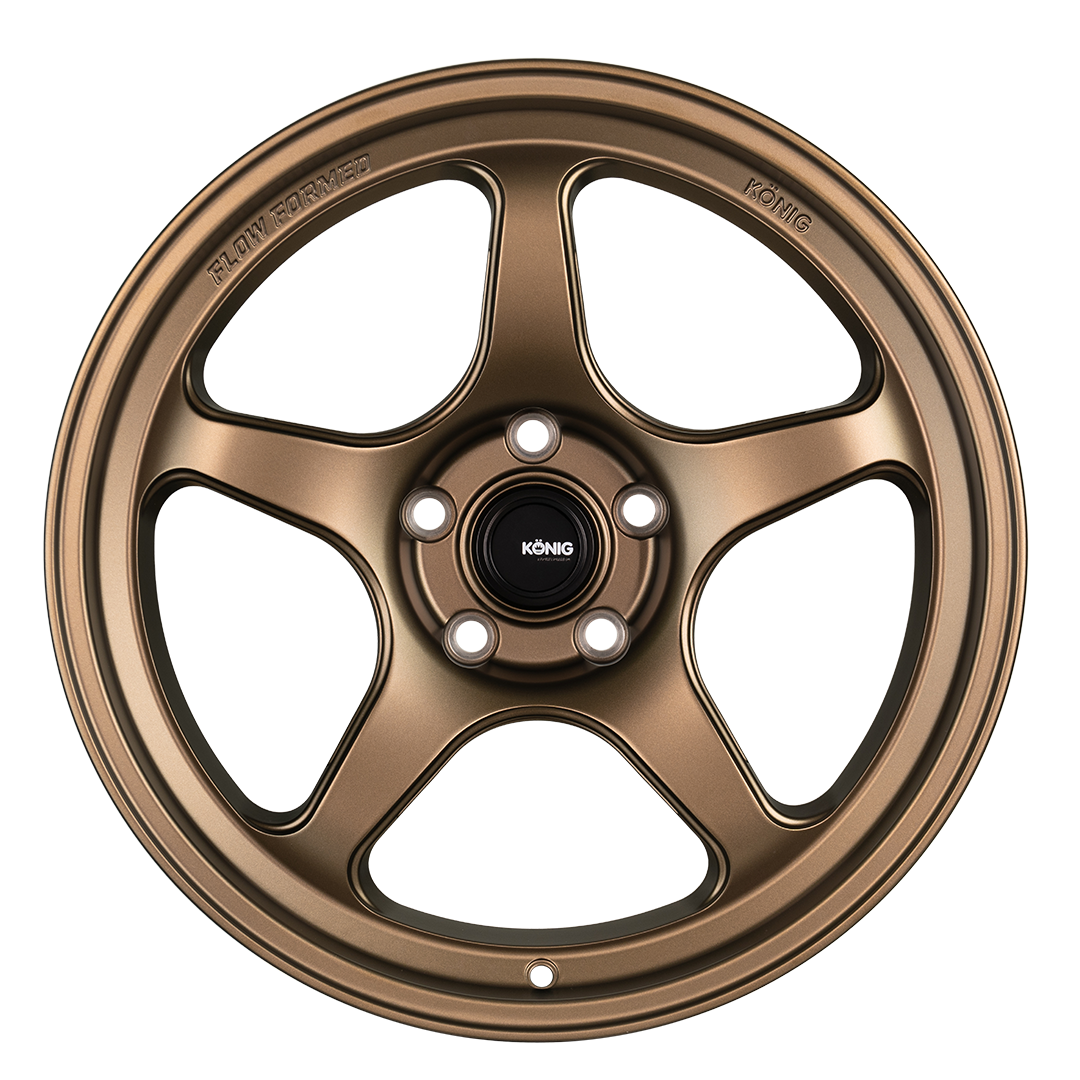

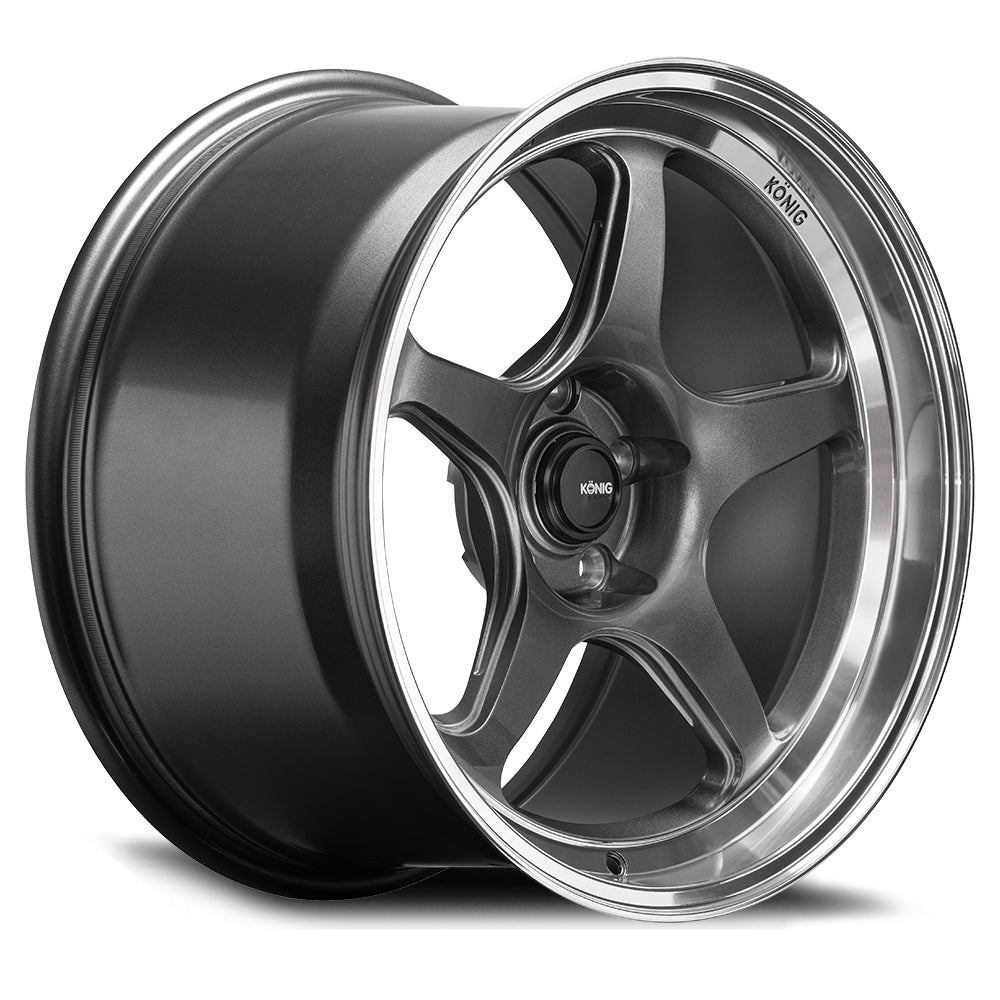

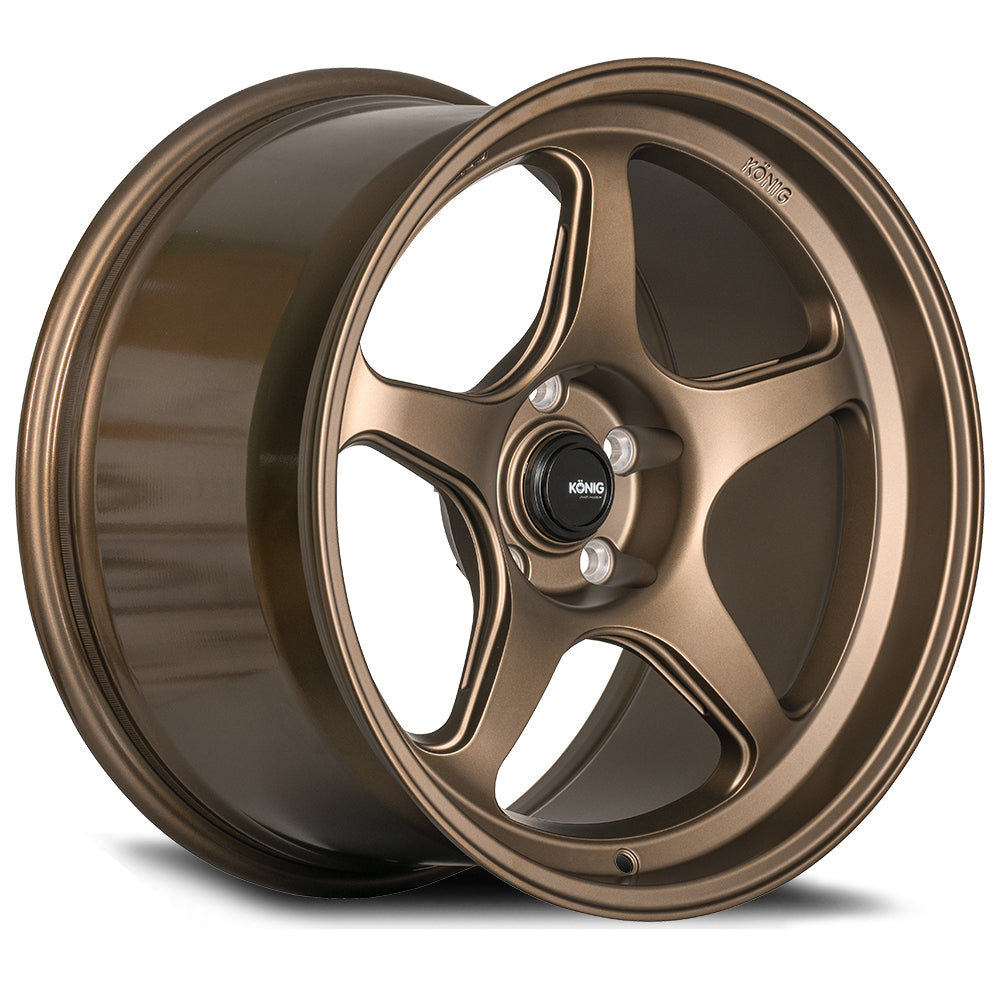

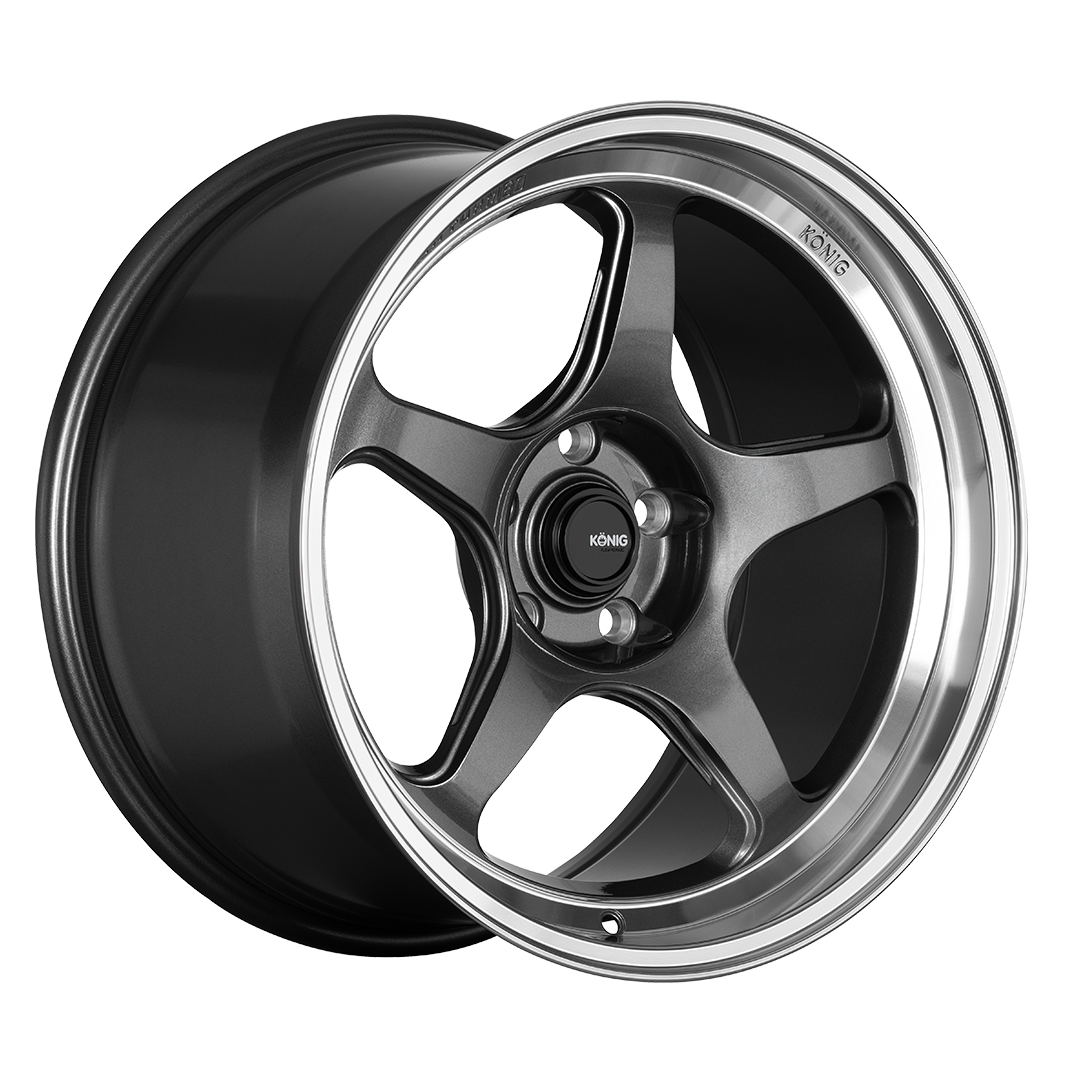

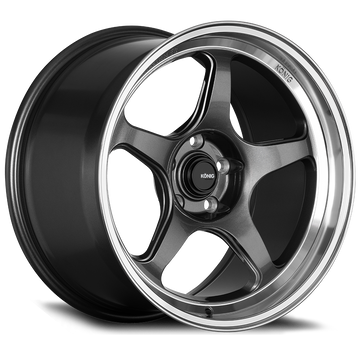

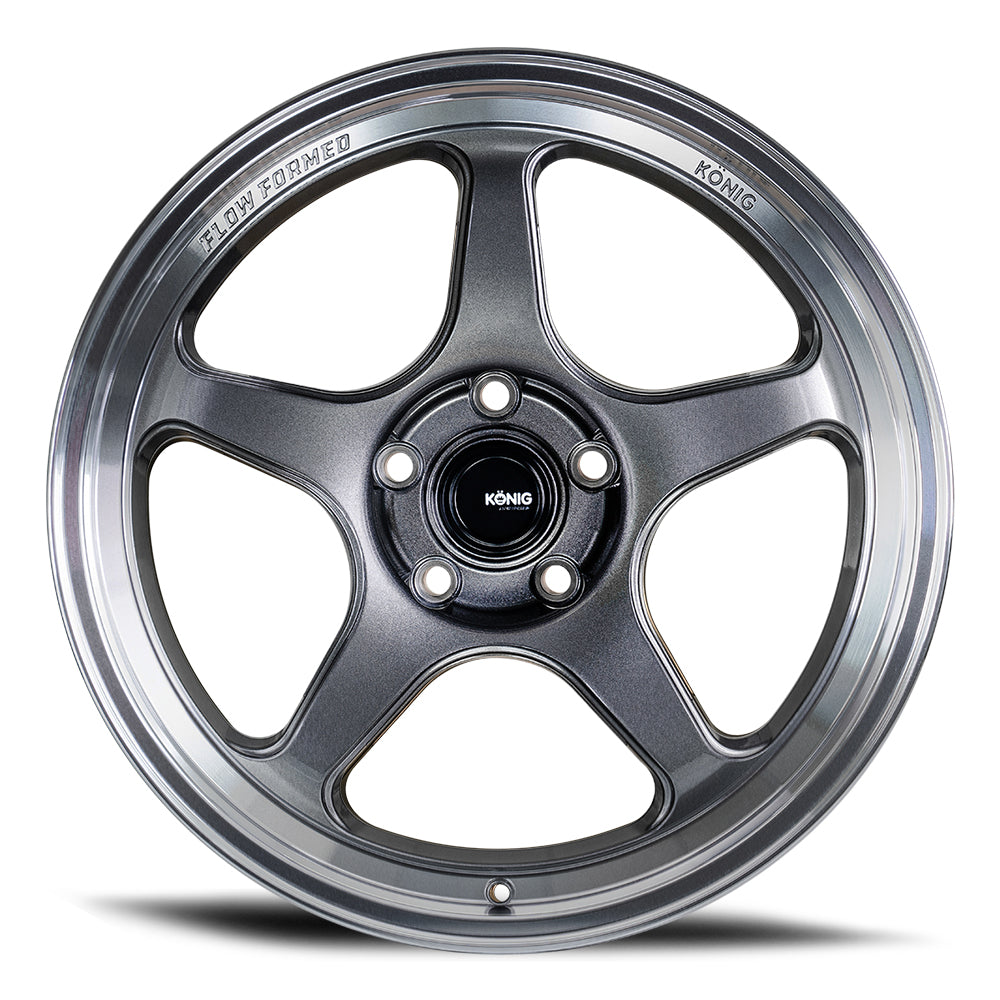

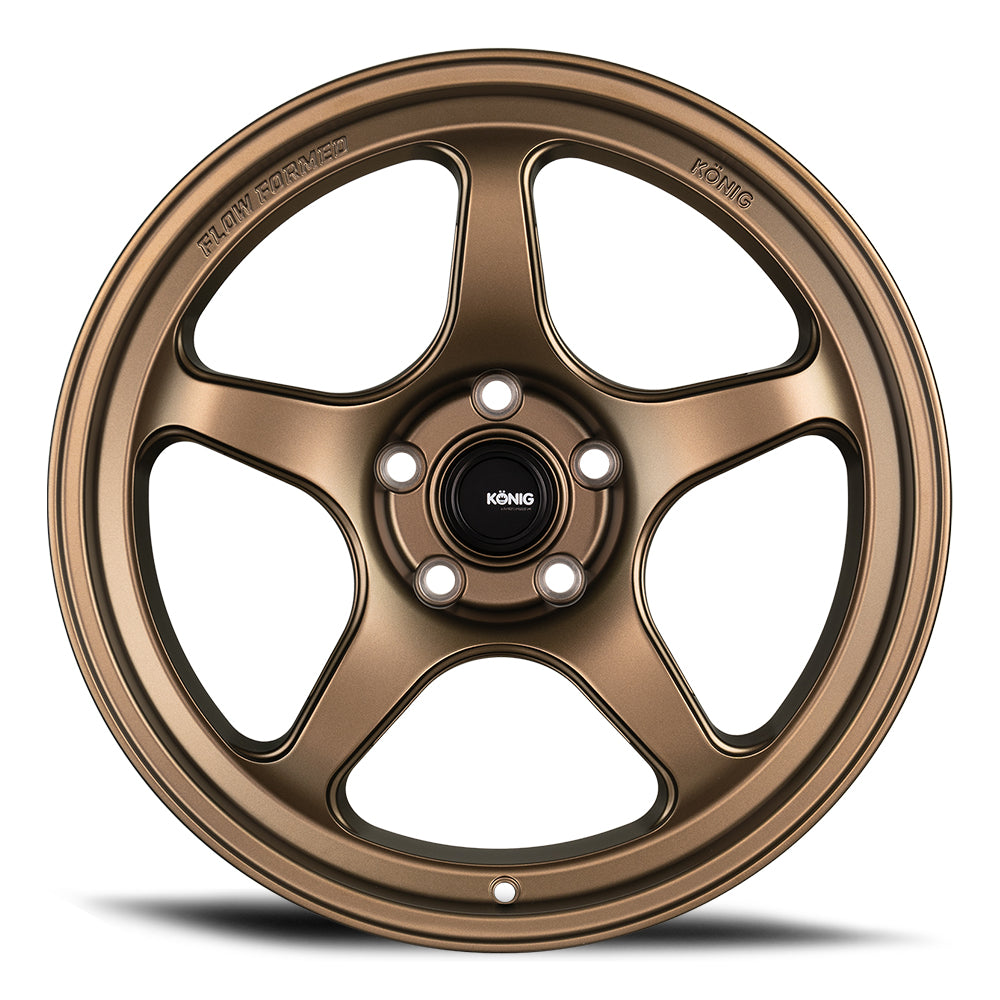

With a range of sizes from 15-inch all the way up to 19-inch applications, the Hyperspec is poised to be a legendary offering from Konig’s Flow Formed line up. Based on a classic 5-spoke design, Hyperspec’s tapered spokes and pronounced stepped lip lend themselves to a simple, aggressive design that matches up perfectly with countless chassis. Available in Matte Bronze and Anthracite Metallic with a mirror machined lip, there’s no paint or vehicle style that won’t look right at home with a set of Hyperspecs mounted!
-
4-Lug- 5-Lug
6-Lug- Lightweight
- Low Offsets
-
- FLOW FORMED
- Back Cut
- Ball Cut
- Knurled Bead Seats
- High Offsets
-
- INCREASED TENSILE STRENGTH
- LIGHTER WEIGHTS / LOWER UNSPRUNG WEIGHT
- INCREASED ELONGATION
- GREATER SHOCK RESISTANCE
- HIGHER TOLERANCE OF RESISTANCE AGAINST FATIGUE
- LIMITED LIFETIME WARRANTY AGAINST STRUCTURAL DEFECT...details
- PROVEN HISTORY WITH OVER 40 YEARS OF WHEEL MANUFACTURING DEVELOPMENT
AMPLIFORM Features:
| KONIG PART# | SIZE | PCD | OFFSET (MM) | FINISH | CENTER BORE | MANUFACTURER TYPE | LOAD RATING | NET WEIGHT (LB) |
|---|---|---|---|---|---|---|---|---|
| HP75100356 | 15X7 | 4X100 | 35 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1213 | |
| HP75100358 | 15X7 | 4X100 | 35 | MATTE BRONZE | 73.1 | FLOW FORM | 1213 | |
| HP85100356 | 15X8 | 4X100 | 35 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1213 | |
| HP85100358 | 15X8 | 4X100 | 35 | MATTE BRONZE | 73.1 | FLOW FORM | 1213 | |
| HP95100356 | 15X9 | 4X100 | 35 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1213 | |
| HP95100358 | 15X9 | 4X100 | 35 | MATTE BRONZE | 73.1 | FLOW FORM | 1213 | |
| HP87100406 | 17X8 | 4X100 | 40 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1433 | |
| HP87100408 | 17X8 | 4X100 | 40 | MATTE BRONZE | 73.1 | FLOW FORM | 1433 | |
| HP97100456 | 17X9 | 4X100 | 45 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1543 | |
| HP97100458 | 17X9 | 4X100 | 45 | MATTE BRONZE | 73.1 | FLOW FORM | 1543 | |
| HP87510406 | 17X8 | 5X100 | 40 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1521 | |
| HP87510408 | 17X8 | 5X100 | 40 | MATTE BRONZE | 73.1 | FLOW FORM | 1521 | |
| HP97510406 | 17X9 | 5X100 | 40 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1543 | |
| HP97510408 | 17X9 | 5X100 | 40 | MATTE BRONZE | 73.1 | FLOW FORM | 1543 | |
| HP88508426 | 18X8.5 | 5X108 | 42 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1587 | |
| HP88508428 | 18X8.5 | 5X108 | 42 | MATTE BRONZE | 73.1 | FLOW FORM | 1587 | |
| HP88512326 | 18X8.5 | 5X112 | 32 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 66.56 | FLOW FORM | 1587 | |
| HP88512426 | 18X8.5 | 5X112 | 42 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 66.56 | FLOW FORM | 1587 | |
| HP88512428 | 18X8.5 | 5X112 | 42 | MATTE BRONZE | 66.56 | FLOW FORM | 1587 | |
| HP98512426 | 18X9 | 5X112 | 42 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 66.56 | FLOW FORM | 1587 | |
| HP98512428 | 18X9 | 5X112 | 42 | MATTE BRONZE | 66.56 | FLOW FORM | 1587 | |
| HP89512326 | 19X8.5 | 5X112 | 32 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP89512426 | 19X8.5 | 5X112 | 42 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP99512426 | 19X9 | 5X112 | 42 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP87514406 | 17X8 | 5X114.3 | 40 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1543 | |
| HP87514408 | 17X8 | 5X114.3 | 40 | MATTE BRONZE | 73.1 | FLOW FORM | 1543 | |
| HP97514406 | 17X9 | 5X114.3 | 40 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1543 | |
| HP97514408 | 17X9 | 5X114.3 | 40 | MATTE BRONZE | 73.1 | FLOW FORM | 1543 | |
| HP88514356 | 18X8.5 | 5X114.3 | 35 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1587 | |
| HP88514358 | 18X8.5 | 5X114.3 | 35 | MATTE BRONZE | 73.1 | FLOW FORM | 1587 | |
| HP88514436 | 18X8.5 | 5X114.3 | 43 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1587 | |
| HP88514438 | 18X8.5 | 5X114.3 | 43 | MATTE BRONZE | 73.1 | FLOW FORM | 1587 | |
| HP98514256 | 18X9.5 | 5X114.3 | 25 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1587 | |
| HP98514258 | 18X9.5 | 5X114.3 | 25 | MATTE BRONZE | 73.1 | FLOW FORM | 1587 | |
| HP98514356 | 18X9.5 | 5X114.3 | 35 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1587 | |
| HP98514358 | 18X9.5 | 5X114.3 | 35 | MATTE BRONZE | 73.1 | FLOW FORM | 1587 | |
| HP08514226 | 18X10.5B | 5X114.3 | 22 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP08514228 | 18X10.5B | 5X114.3 | 22 | MATTE BRONZE | 73.1 | FLOW FORM | 1598 | |
| HP89514326 | 19X8.5 | 5X114.3 | 32 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP89514328 | 19X8.5 | 5X114.3 | 32 | MATTE BRONZE | 73.1 | FLOW FORM | 1598 | |
| HP89514426 | 19X8.5 | 5X114.3 | 42 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP89514428 | 19X8.5 | 5X114.3 | 42 | MATTE BRONZE | 73.1 | FLOW FORM | 1598 | |
| HP99514356 | 19X9.5 | 5X114.3 | 35 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 73.1 | FLOW FORM | 1598 | |
| HP99514358 | 19X9.5 | 5X114.3 | 35 | MATTE BRONZE | 73.1 | FLOW FORM | 1598 | |
| HP88520326 | 18X8.5 | 5X120 | 32 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 72.56 | FLOW FORM | 1587 | |
| HP88520328 | 18X8.5 | 5X120 | 32 | MATTE BRONZE | 72.56 | FLOW FORM | 1587 | |
| HP98520406 | 18X9.5 | 5X120 | 40 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 72.56 | FLOW FORM | 1587 | |
| HP98520408 | 18X9.5 | 5X120 | 40 | MATTE BRONZE | 72.56 | FLOW FORM | 1587 | |
| HPT8520256 | 18X10.5B | 5X120 | 25 | ANTHRACITE METALLIC W/ MIRROR MACHINED LIP | 66.56 | FLOW FORM | 1598 | |
| HPT8520258 | 18X10.5B | 5X120 | 25 | MATTE BRONZE | 66.56 | FLOW FORM | 1598 |
Tour the HyperSpec!
Simplicity is king! Lightweight Flow Formed construction backed by a c-channel rear flange, Hyperspec has everything you want from a performance-minded wheel. Its curved spokes offer maximum brake caliper clearance while a knurled bead was added for additional tire grip, helping to make this wheel every bit as functional as it is good looking.
FEA Analysis
Utilizing Finite Element Analysis (FEA) and advanced engineering simulation software we push every wheel design through countless variations of impact, bending and stress, simulations to optimize wheel weight, increase strength and rigidity and reinforce high-stress areas. FEA allows us to do hundreds of minor adjustments and simulations before we even get to the physical tests.

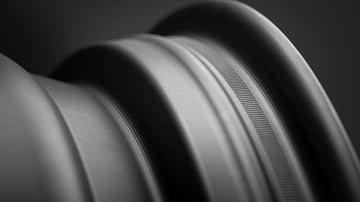

Knurled Bead Seat
Konig forged wheels incorporate knurled bead seating, a design feature that enhances the tire-to-wheel interface. This textured surface optimizes grip and minimizes tire slippage during high-performance maneuvers, promoting precise handling and driver confidence.
Heritage Built. Performance Driven.
Konig isn't just about flashy looks. We've been meticulously crafting wheels for over four decades, constantly evolving our manufacturing processes to achieve the perfect balance of strength, weight, and style. When you choose Konig, you're not just getting a wheel, you're choosing a trusted partner with a proven track record of innovation and performance.
Quality Control
Our commitment to quality control goes beyond aesthetics. We utilize advanced inspection methods and rigorous testing procedures to ensure every wheel meets the highest performance standards.
Isn't Flow Formed Just Cast?
Diving deep into the advanced engineering that powers Flow Formed wheels. Discover the innovation that makes these wheels lighter, stronger, and precision-crafted for ultimate performance.
